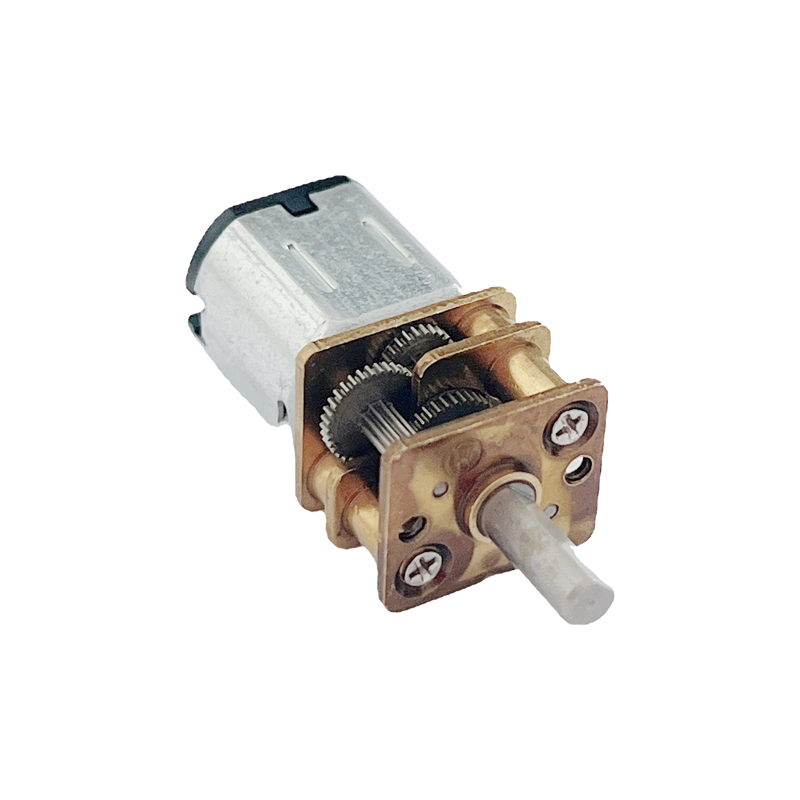

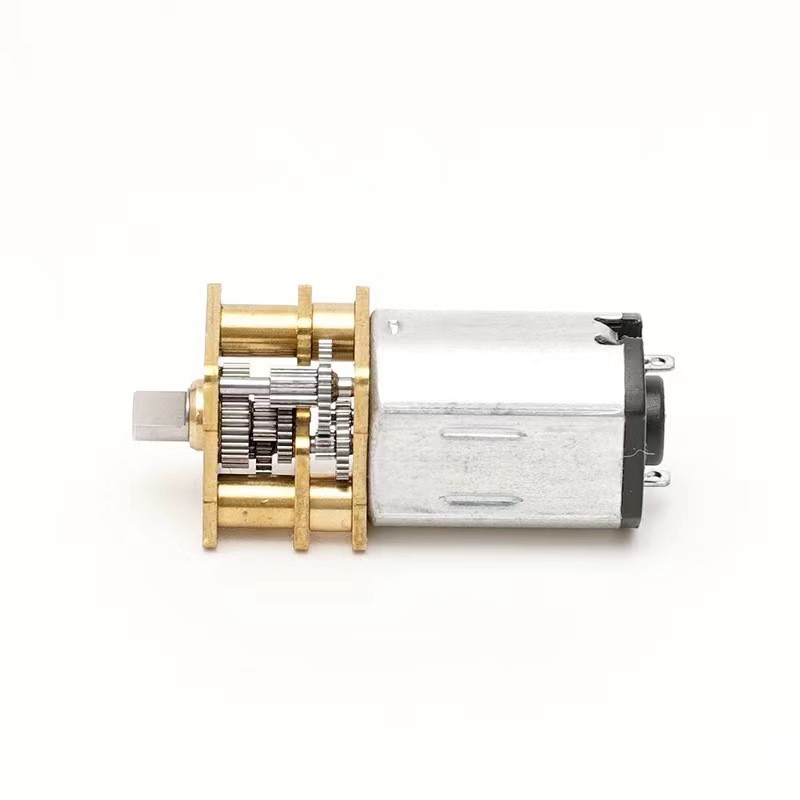

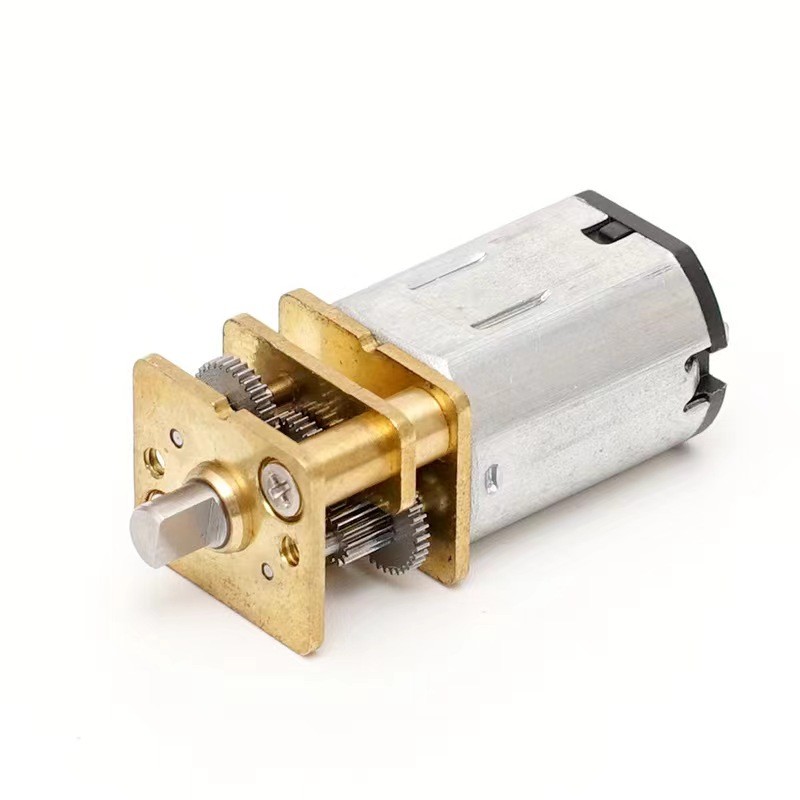

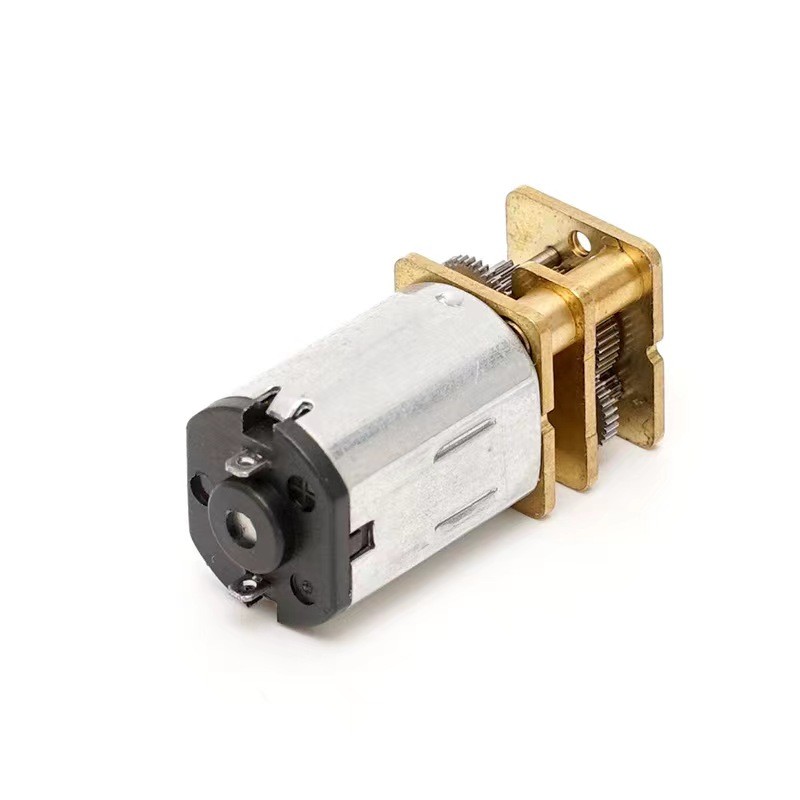

SMF12-N20

Product Item:
Product Categories: dc Gearbox Motor
Brand Name:Shengma Motor CO.,LTD. in China
Voltage: 1.5V~36VDC
Speed: 3RPM~1500RPM
Torque: 0.03kg.cm~4kg.cm
Electric Brush/Carbon Brush
Service:ODM/OEM Accepted
Feature:Factory production; High precision; Customizable
Certificate:ROHS,ISO9001,IATF,REACH Certificate of Origin
Customization:
Voltage,Current,Speed,Torque,Output shaft,DC Motor,Gearbox,Ratio,Brush of DC Motor,Wire,Encoder,Gear,Noise Level,Lifetime Cycle

Amazon To Buy

Product Description:

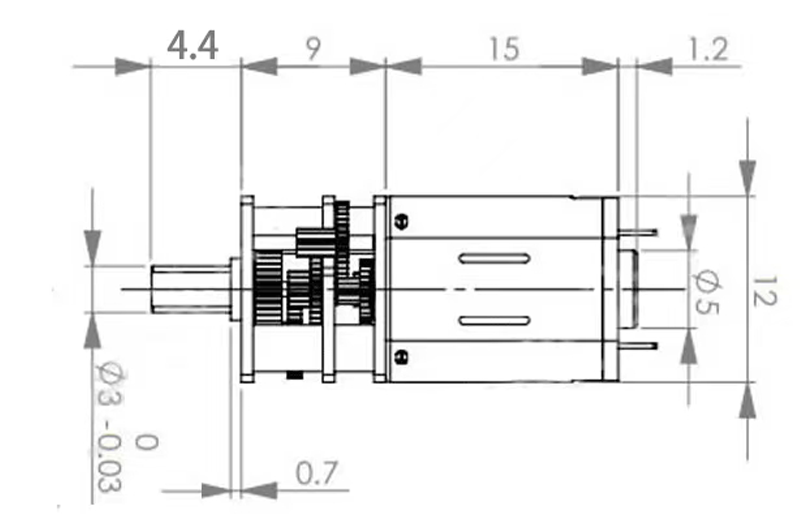

1. Product dimensions (unit:mm)

2. Motor data

Motor Model	Voltage (V)	(No load)		(At max eff)				(Stall)
Motor Model	Voltage (V)	Speed rpm	Current mA	Speed rpm	CurretmA	Torque g.fcm	Output	Torque gfcm	Current A
SM-N20-3160	3	16000	≤70	13000	≤210	5	0.68	≥20	≥700
SM-N20-6104	6	10400	≤20	8000	≤40	4	0.25	≥12	≥150
SM-N20-6155	6	15500	≤35	12400	≤80	3	0.52	16	≥350

Gearbox data

Reduction stage	2	3	4	4
Reduction ratio	10i	20i/30i	50i/63i/100i	150i/210/250i/298i
Gearbox L:mm	9	9	9	9
Gearbox efficency	81%	73%	66%	59%

Model	No load	At max eff				Stall
Model	Voltage V	Speed rpm	Speed rpm	Current mA	Torque gf.cm	Torque gf.cm	Current mA
SM12F-375-10i	3	750	500	80	20	300	100
sM12F-375-30i	3	250	200	80	70	560	100
SM12F-375-50i	3	150	120	80	100	800	100
SM12F-375-100i	3	75	60	80	150	1200	100
sM12F-375-150i	3	50	40	60	200	1600	100
SM12F-375-298i	3	25	20	60	500	4000	100
SM12F-6150-10i	6	1500	1000	160	500	300	100
SM12F-6150-30i	6	500	400	160	150	1200	100
SM12F-6150-50i	6	300	240	160	200	1600	100
SM12F-6150-100i	6	150	120	160	300	2400	200
SM12E.6150-150i	6	100	80	160	400	3200	200
