Product Item: Product Categories: DC Motor Brand Name:Shengma Motor CO.,LTD. in China Voltage: 1.5V~36VDC Speed: 3500~3752RPM Torque: 946~789 g.cm Electric Brush/Carbon Brush Service:ODM/OEM Accepted Feature:Factory production; High precision; Customizable Certificate:ROHS,ISO9001,IATF,REACH Certificate of Origin Customization: Voltage,Current,Speed,Torque,Output shaft,DC Motor,Gearbox,Ratio,Brush of DC Motor,Wire,Encoder,Gear,Noise Level,Lifetime Cycle

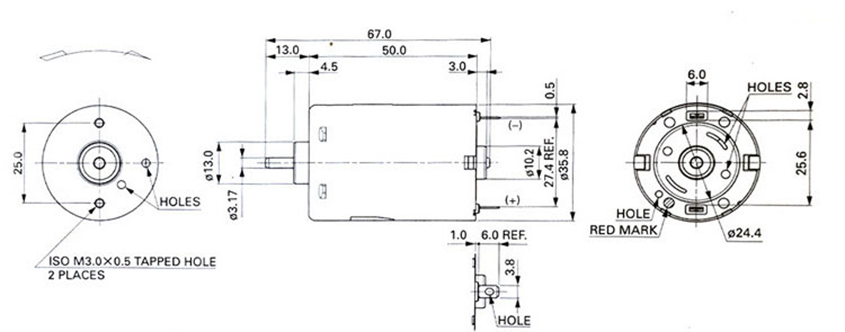

1. Product dimensions (unit:mm)
2. Motor data
| Motor Model | Voltage (V) | (No load) | (At max eff) | (Stall) | |||||
| Speed rpm | Current A | Speed rpm | CurretA | Torque g.cm | Output | Torque g.cm | Current A | ||
| SM-540SH-16400 | 24 | 3752 | 0.058 | 3330 | 0.47 | 106 | 3.63 | 946 | 3.74 |
| SM-540SH-22210 | 12 | 3500 | 0.11 | 2900 | 0.53 | 132.6 | 4.14 | 789.4 | 2.64 |
3. Regular Progress
4. Production Progress
5. Package
6. Shipping&Delivery
