SRF-370CH

Product Item:
Product Categories: DC Motor
Brand Name:Shengma Motor CO.,LTD. in China
Voltage: 1.5V~36VDC
Speed: 2600~8000RPM
Torque: 83~200 g.cm
Electric Brush/Carbon Brush
Service:ODM/OEM Accepted
Feature:Factory production; High precision; Customizable
Certificate:ROHS,ISO9001,IATF,REACH Certificate of Origin
Customization:
Voltage,Current,Speed,Torque,Output shaft,DC Motor,Gearbox,Ratio,Brush of DC Motor,Wire,Encoder,Gear,Noise Level,Lifetime Cycle

Amazon To Buy

Product Description:

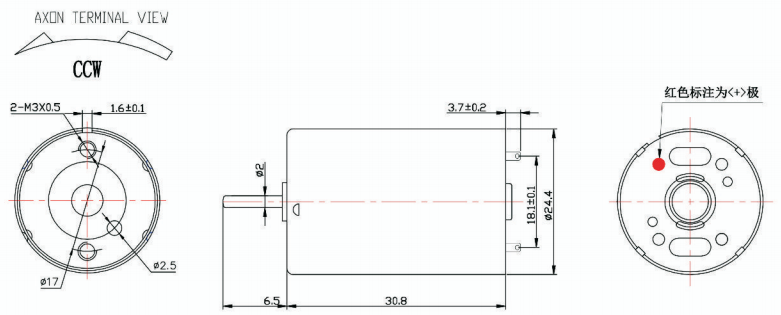

1. Product dimensions (unit:mm)

2. Motor data

Motor Model	Voltage (V)	(No load)		(At max eff)				(Stall)
Motor Model	Voltage (V)	Speed rpm	Current A	Speed rpm	CurretA	Torque g.fcm	Output	Torque g.cm	Current A
SRK-370RH-09760	12	2500	0.11	1991	0.041	1.7	0.1	83.3	0.162
SRK-370RH-15320	12	6300	0.036	5159	0.163	2.2	0.64	126	0.735
SRK-370RH-18260	12	8000	0.048	6627	3.4	34.3	2.36	200	1.118
SRK-370RH-081130	12	3600	0.009	2877	2.1	21.7	0.63	108	0.143
